SKF / TMFT 36 / BEARING FITTING TOOL KITS

  • Brands SKF
  • Product Code: TMFT 36
  • Availability: In Stock
  • $600.00

  • Ex Tax: $600.00

Bearing fitting tool kits

Helps prevent premature bearing failures

SKF bearing fitting tool kit TMFT 24
TMFT 24

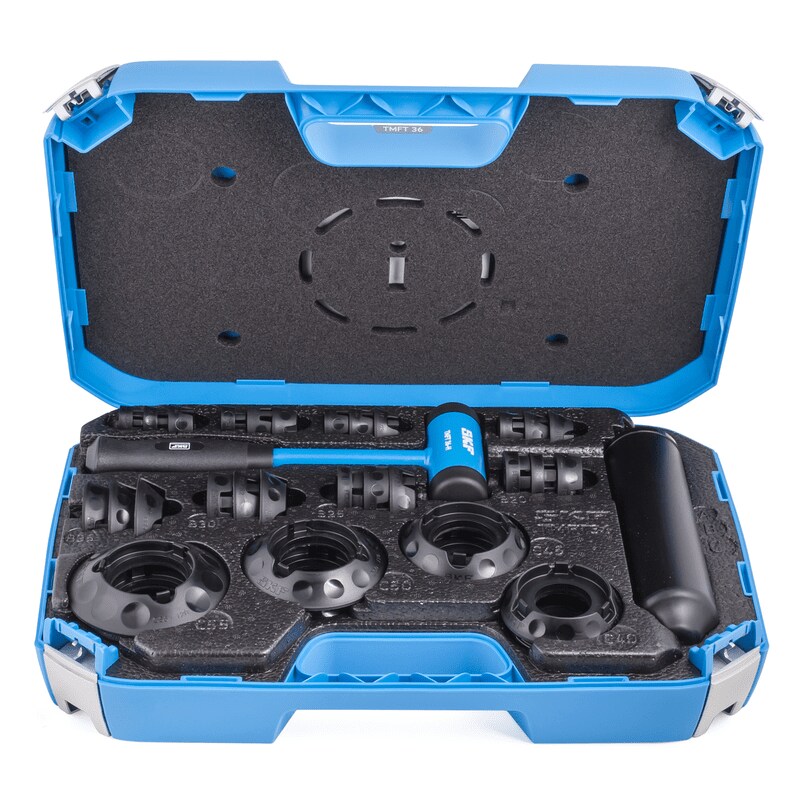

SKF bearing fitting tool kit TMFT 36
TMFT 36

Poor fitting, usually using brute force, accounts for 16% of premature bearing failures. SKF Bearing Fitting Tool Kits are designed for quick and precise mounting of bearings, while minimising the risk of bearing damage.

The right combination of impact ring and sleeve allows effective transmission of mounting force to the bearing ring with the interference fit, minimising the risk of damaging the bearing’s raceways or rolling elements. In addition to mounting bearings, the TMFT series are also suitable for mounting other components such as bushings, seals and pulleys.

The TMFT 36 kit contains 36 impact rings and the TMFT 24 contains 24 rings. Both kits have 3 impact sleeves and a dead-blow hammer packed in a lightweight carrying case.

  • The TMFT 24 facilitates the mounting of different bearings with bore diameters from 15–45 mm
  • The TMFT 36 facilitates the mounting of different bearings with bore diameters from 10–55 mm
  • Facilitates correct mounting on shaft, housing and blind applications
  • The diameter of the impact ring precisely fits the inner and outer diameter of the bearing
  • Small diameter of the impact area on top of the sleeve allows effective transmission and distribution of mounting force
  • Impact rings and sleeves are made of high impact resistant material for longevity
  • Click connection between impact ring and sleeve provides stability and durability
  • The impact rings are suitable for use under a press
  • Impact rings are marked for clear visual identification of the ring’s size and easy selection
  • Even surface of the impact sleeve’s body provides excellent grip
  • The nylon double-side head of the dead-blow hammer helps to prevent damaging the components
  • The rubber handgrip of the dead-blow hammer provides excellent grip
  • SKF TMFT 36 is suitable for SKF Bearing series
    Deep groove
    ball bearing
    Deep groove ball
    bearing (sealed)
    Self aligning
    ball bearing
    6000-601162200-622111200-1211
    6200-621162300-62311129
    6300-631163000-630101301-1311
    6403-6409 2200-2211
    629 2301-2311
    62/22 11207-11210
    62/28
    63/22
    63/28
    16002-16011
    16100-16101
    98203-98206

    Single-row angular
    contact ball bearing

    Double-row angular

    contact ball bearing

    Spherical roller
    bearing
    7000-70113200-321121305-21311
    7200-72113302-331122205/20
    7301-7311 22205-22211
      22308-22311

    Cylindrical roller
    bearing
    Tapered roller
    bearing
    CARB toroidal
    roller bearing
    N 1005-N 101130203-30211C 2205-C 2211
    N 202-N 21130302-30311C 4010
    N 2203- N 221131305-31311C 6006
    N 2304-N 231132004-32011
    N 3004-N 301132205-32211
    N 303- N 31132303-32311
     33010-33011
     33205-33211
    Technical data
    DesignationTMFT 36
    Impact ring
    Bore diameter10–55 mm (0.39–2.17 in.)
    Outer diameter26–120 mm (1.02–4.72 in.)
    Sleeves
    Maximum shaft length

    Sleeve A:  220 mm (8.7 in.)
    Sleeve B:  220 mm (8.7 in.)
    Sleeve C:  225 mm (8.9 in.)
    HammerTMFT 36-H, weight 0,9 kg (2.0 lb)
    Carrying case dimensions530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.)
    Number of rings36
    Number of sleeves3
    Weight (including carrying case)4,4 kg (9.7 lb)
